Akupixel | Installation on wall with screws Installation guide

Start by preparing the wall. Wipe the wall with a cloth and remove any screws, nails, and other obstructions so that the wall is completely even. Then you can measure and mark where the panels are to be mounted.

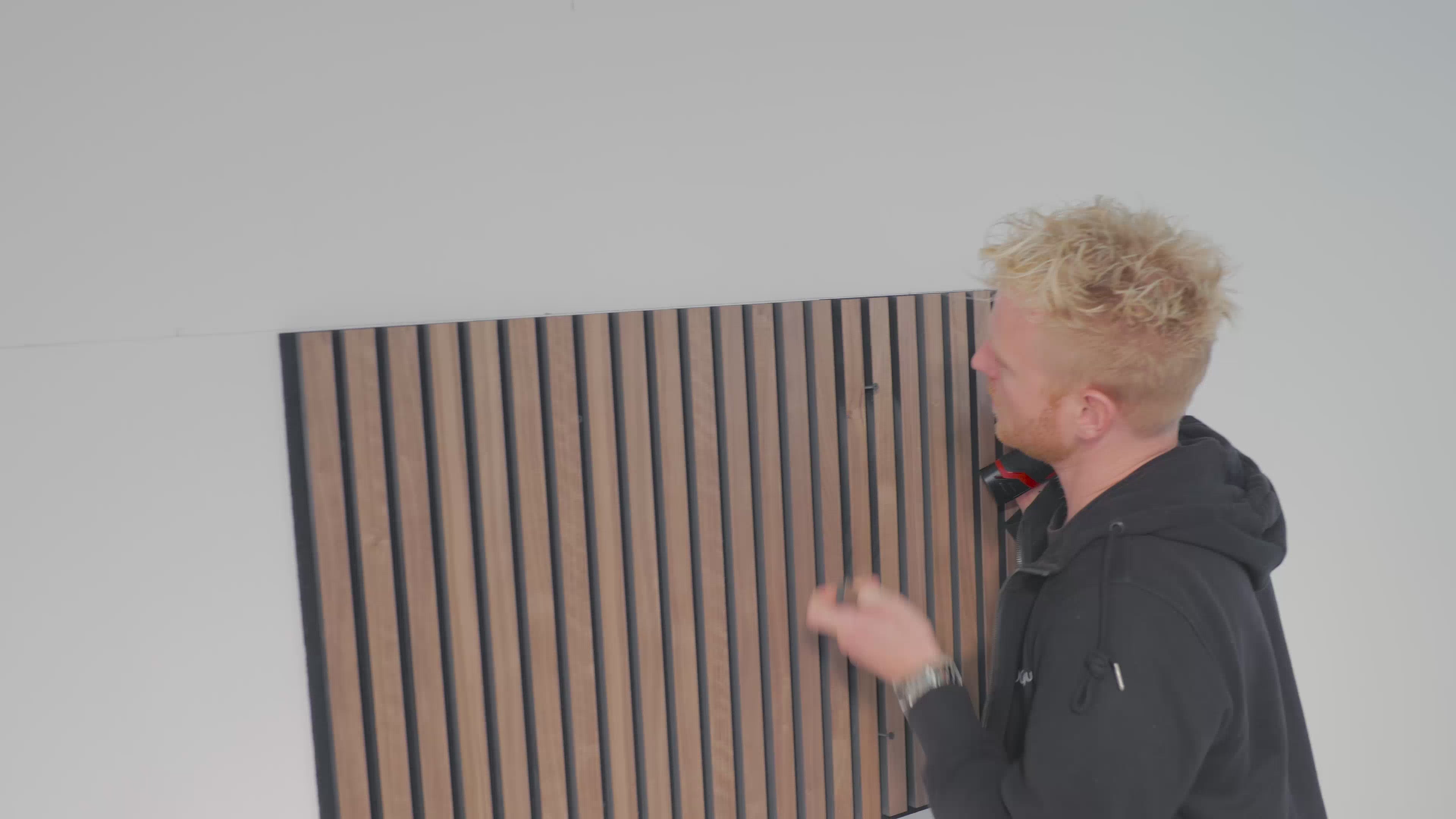

The next step is to decide the direction in which your panels should face. With our Akupanel | 60, it is possible to rotate the panels to create either clear horizontal or vertical stripes on your wall.

If you want the stripes to be horizontal, make sure to rotate the panel so that the slats are facing upwards. If you want the stripes to be vertical, the slats should face horizontally.

Prepare for the installation of the panels by screwing approximately 6 screws halfway into the felt. Distribute the screws evenly in the panels.

You are then ready to mount the panels. Screw the first 60 acoustic panel to the wall by screwing the black plaster screw (35 mm) through the black acoustic felt and into the wall. Check if the panel is mounted straight by using a spirit level along the way.

Use the spacers

When the next panels are to be mounted, it is important that the spacers included in the panel packages are used. If the panels are pushed completely together, the felt distance between the two panels will be too small. Repeat the rest of the panels with the same process as before.

You can use end-lamellas to make a nice frame around the panels to achieve a clean and polished finish. Meter cut the corners with a docking saw to the desired length. Use adhesive to install the end-lammelas.
